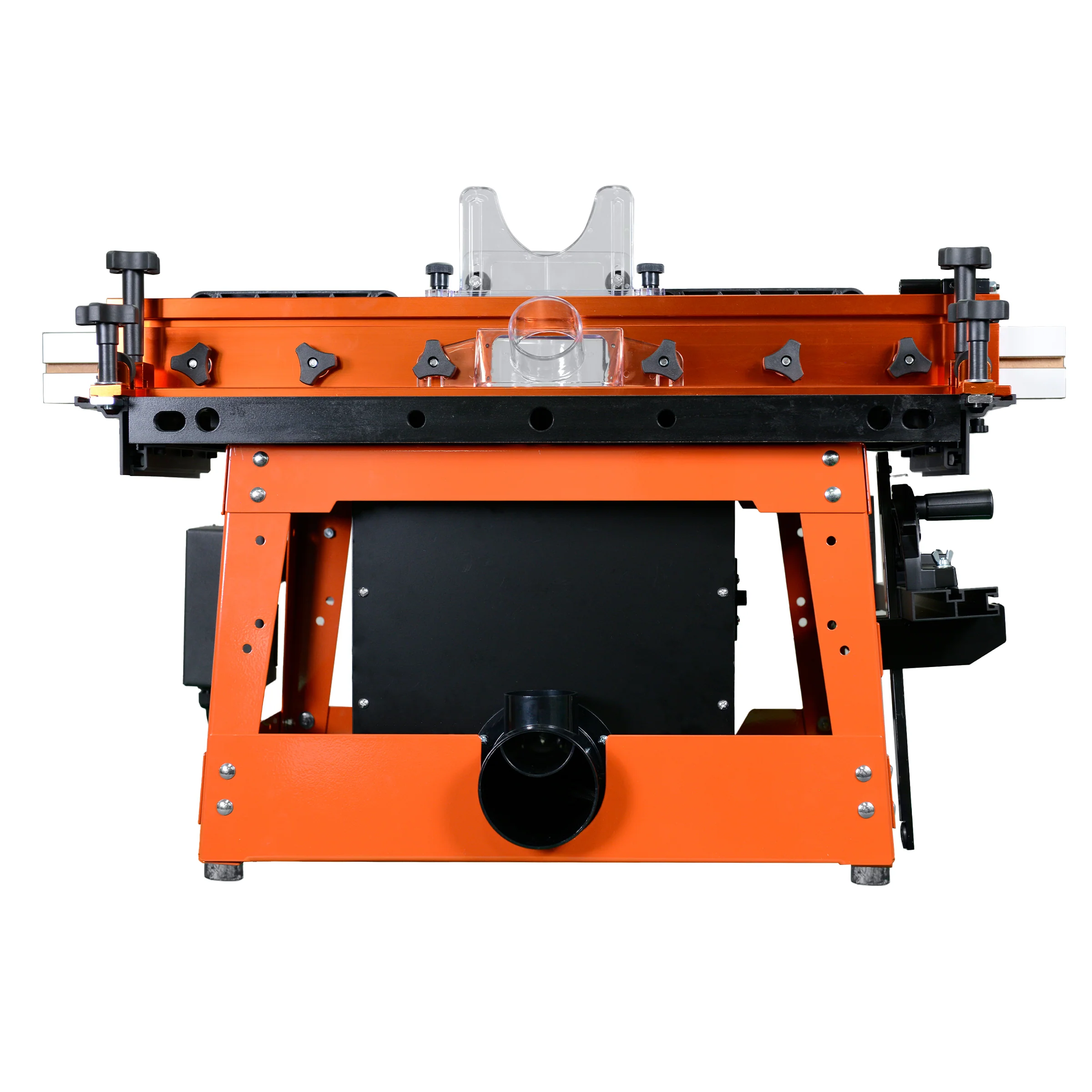

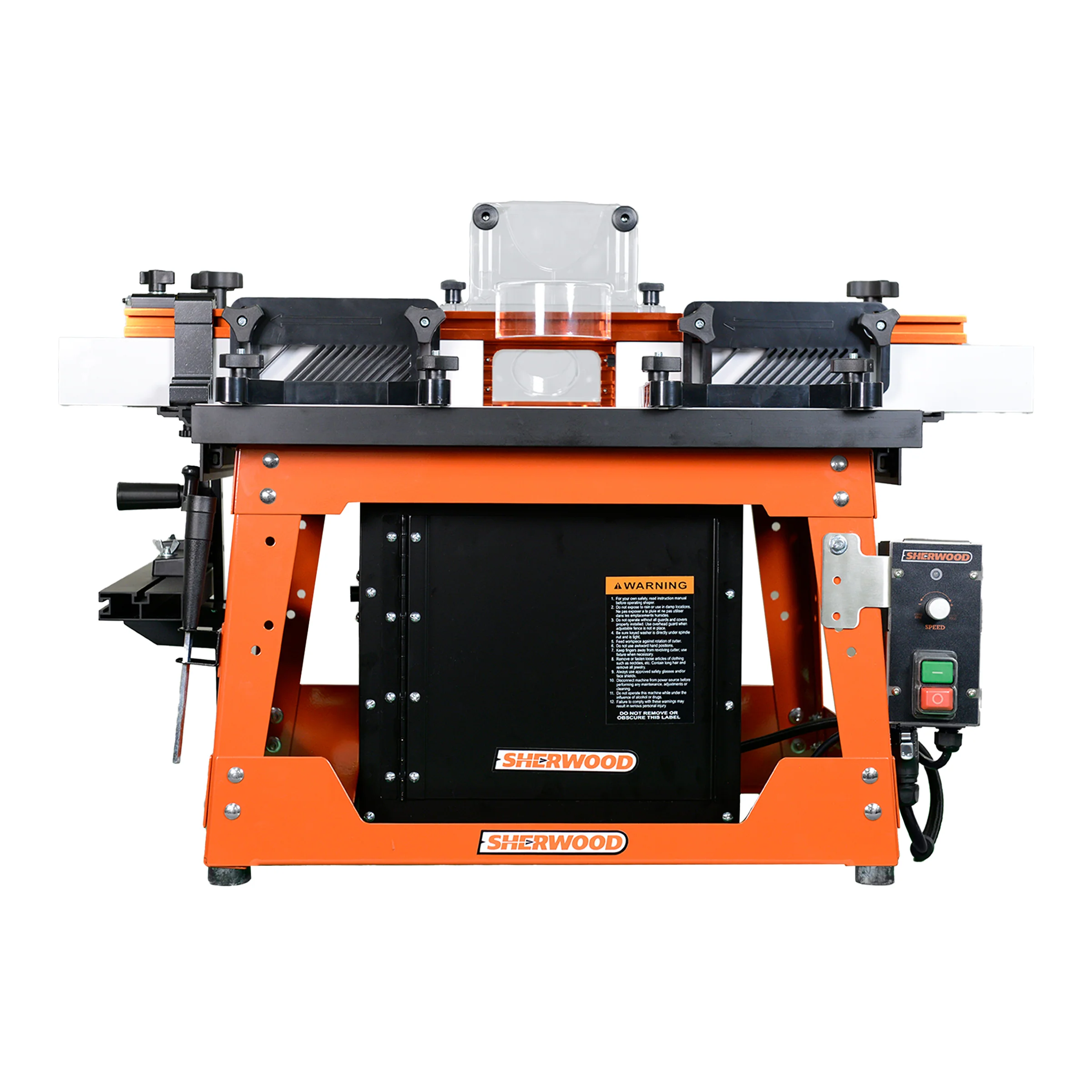

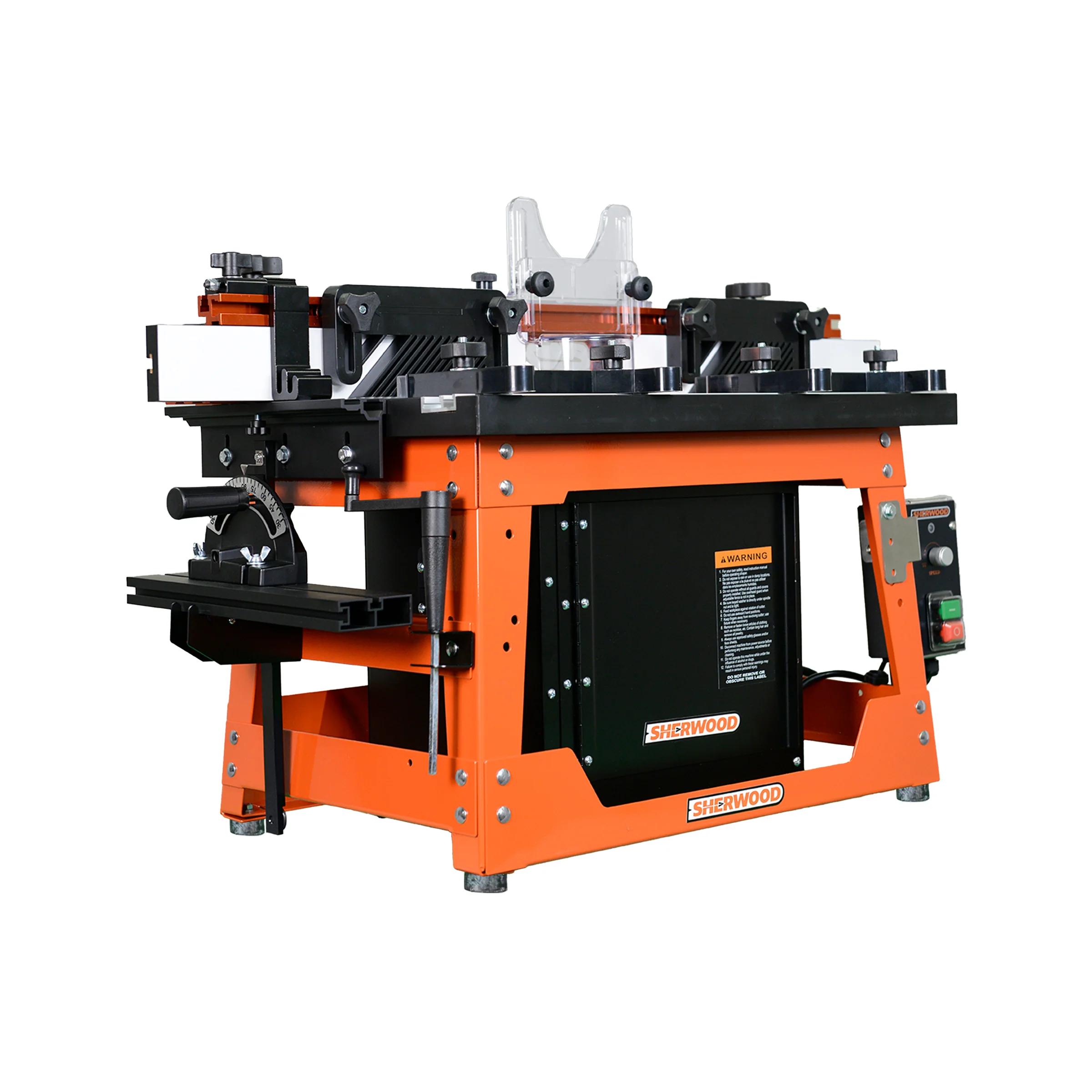

Sherwood Industrial Benchtop Router Table with Cast Iron Table & Plunge Router Lift.

Many woodworkers don’t want or need a big router table. Usually because they have a tiny workshop, or they need something more portable. If this is you, Sherwood has you covered. Sherwood Benchtop Router Tables offer you all the features of the larger router table setups, all in a compact benchtop ensemble.

A well-equipped router table is an invaluable addition to any woodworker’s workshop. And you don’t need a full-size setup to benefit from all the features a modern router table can offer.

Featuring a cast iron worktable, pressed metal stand, remote switch, an excellent fence setup, a range of accessories and a plunge router lift - this Sherwood Cast Iron Industrial Benchtop Router Table is comprehensive and affordable. And because all Sherwood products are backed by a 5-year warranty, you can look forward to long stress-free days of guaranteed routing.

What’s Included

• Cast Iron Router Table Top - 685 x 420mm
• Benchtop Router Table Stand with Mitre Guide & Switch
• RLIFT-3 Plunge Router Lift & Mounting Plate
• 685mm Aluminium Router Table Fence
• Fence Fine Adjustment Set
• Fence Flip Stop
• 2 x Universal Horizontal Featherboards
• 2 x Universal Vertical Featherboards
• Router Dust Collection Box

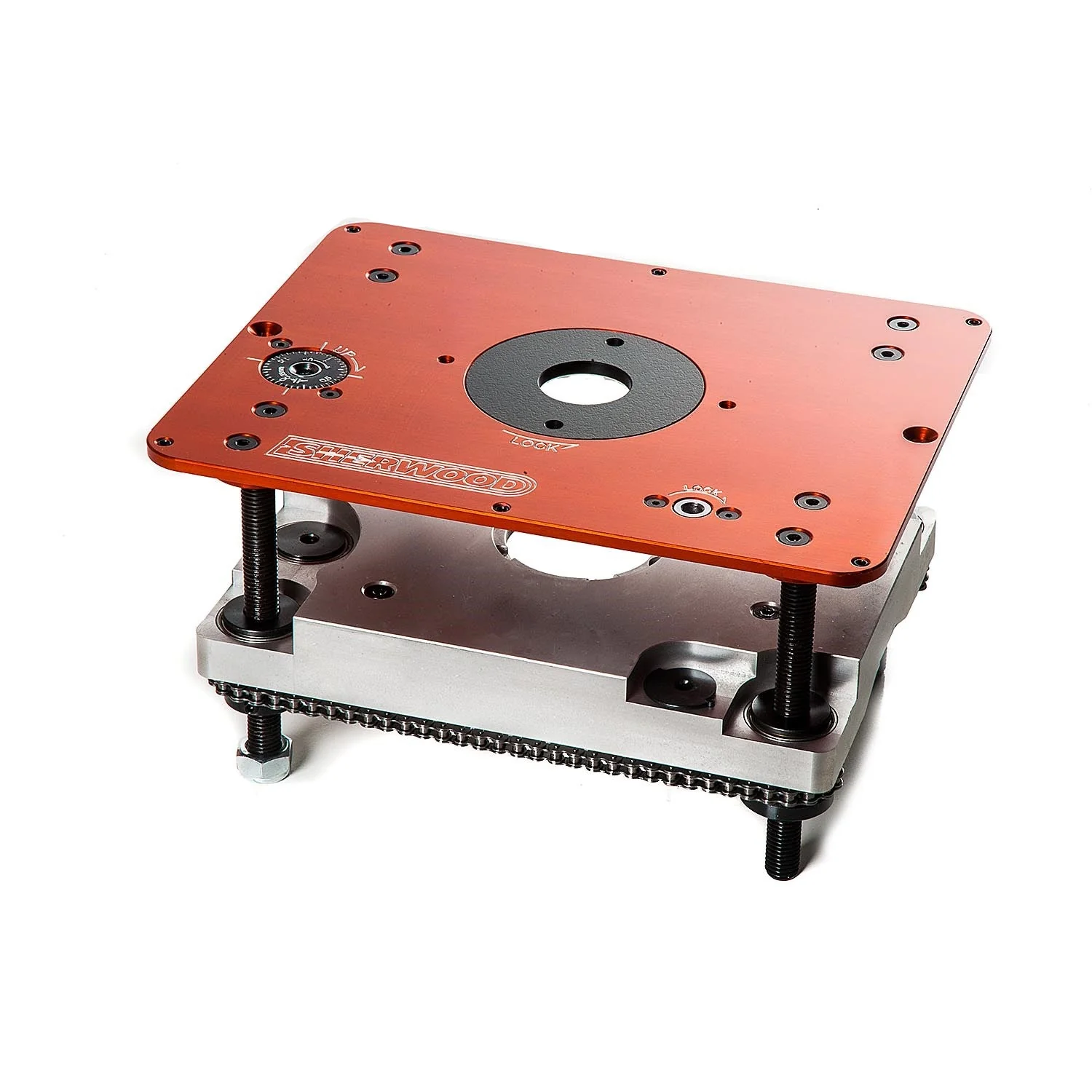

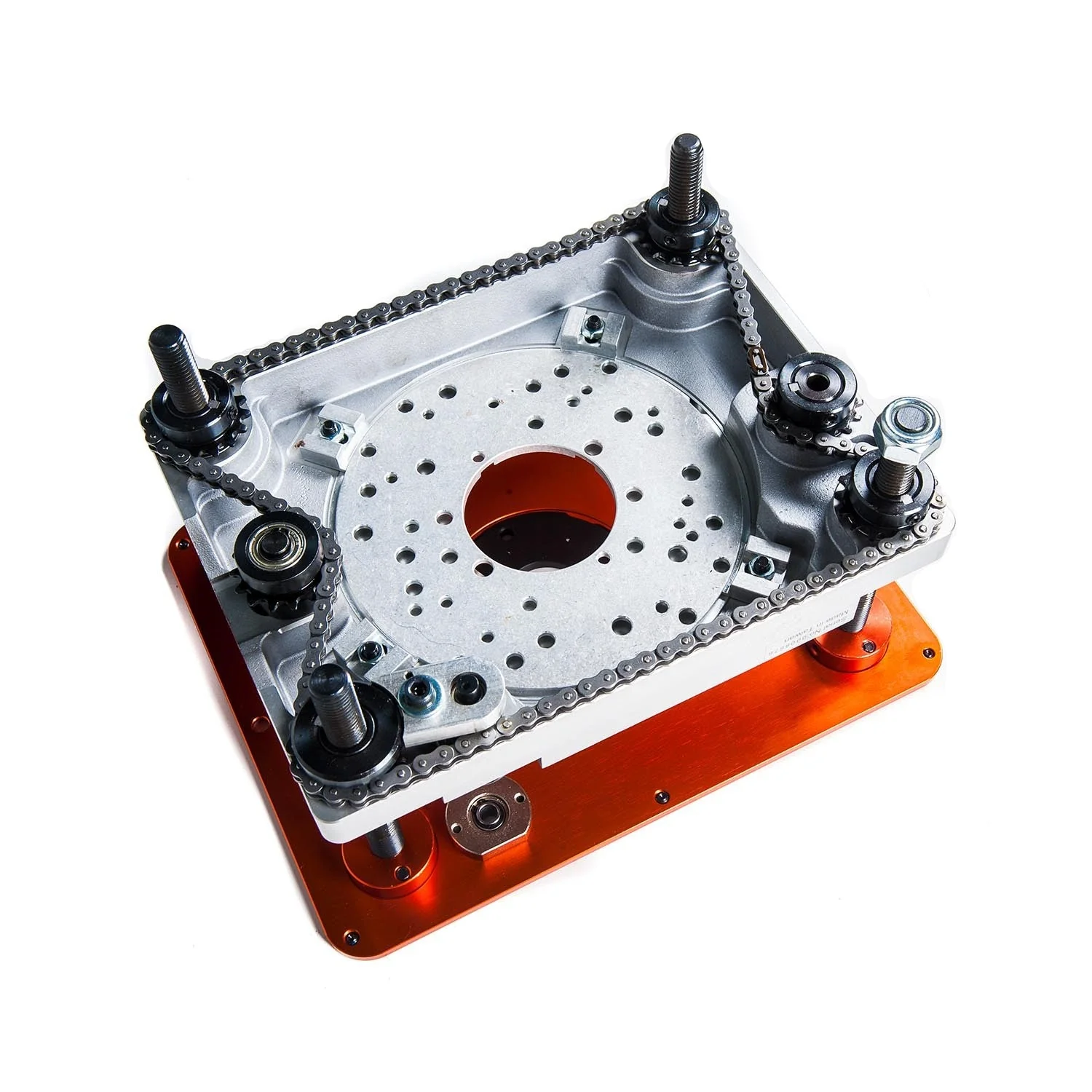

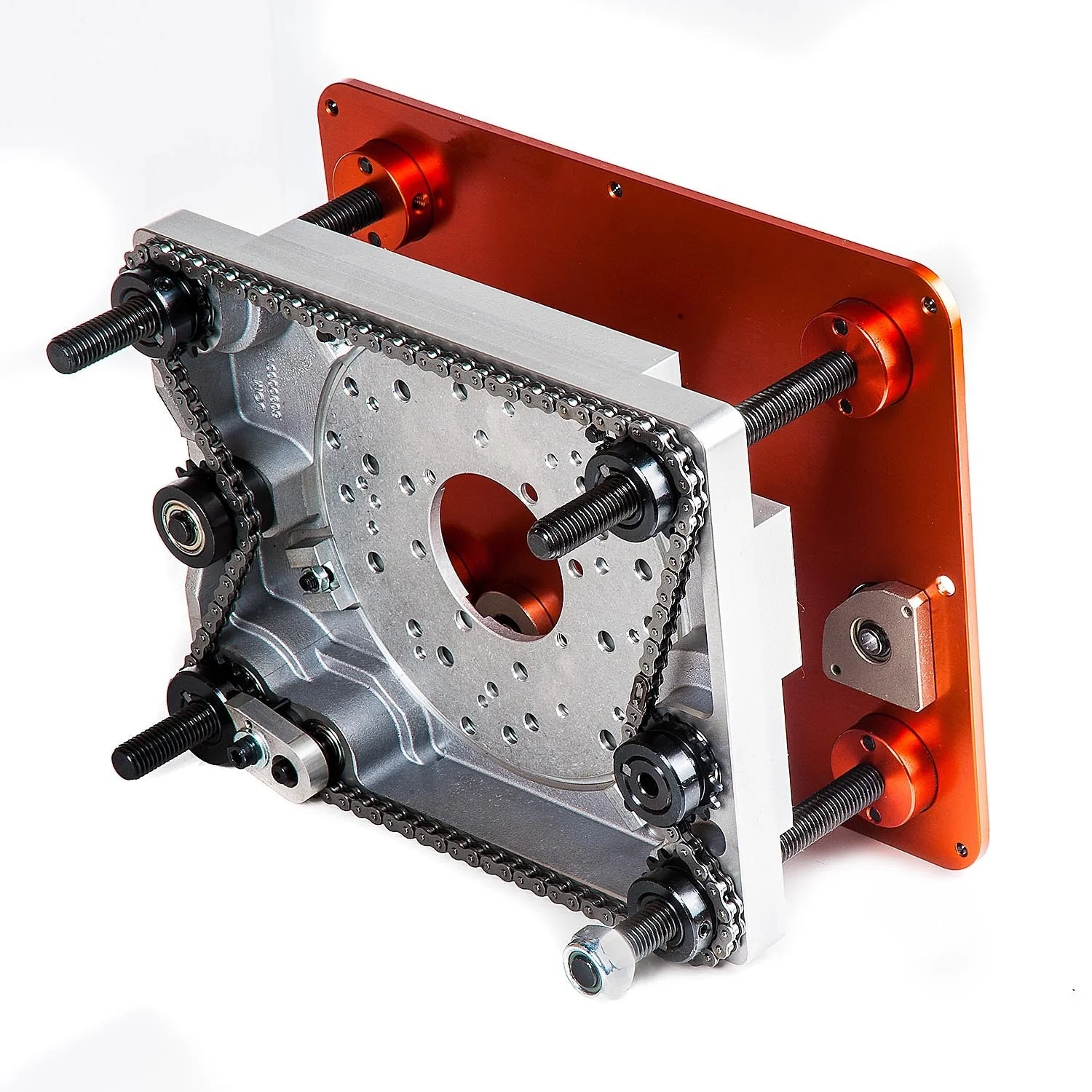

Plunge Router Lift to suit a range of handheld routers

The Plunge Router Lift with Mounting Plate (RLIFT-3) option allows you to attach your choice of handheld plunge router to the router lift base. The included mounting plate suits a broad range of plunge router designs, visit the RLIFT-3 page on the Timbecon website to learn more.

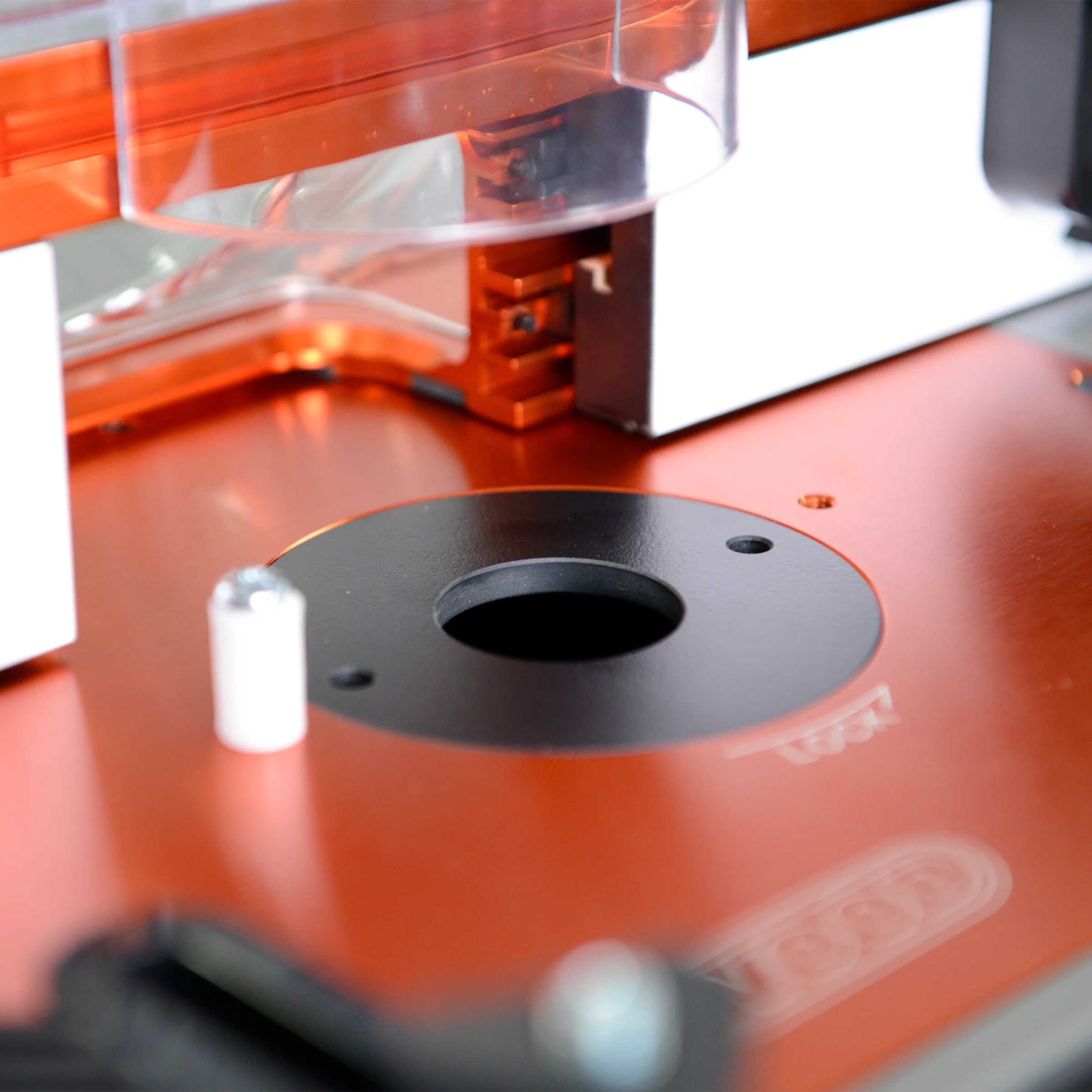

Mounting plate insert rings

Your router lift can accept a variety of throat insert rings. The insert rings feature a twist lock design, so they are held firmly in position, in line with the surrounding surface. Use the inserts rings to minimise the gap around your router bit to eliminate vibration and increase accuracy.  Insert spanner included. Use the SKU’s RTIRS-4 & RTIRB on the Timbecon website to learn more.

Compact

The Sherwood Cast Iron Industrial Benchtop Router Table is compact. So, it is easy to store on a shelf or drop in the boot of your car. It is the perfect router setup for anyone working in a tiny workshop or who needs to take their router to site.

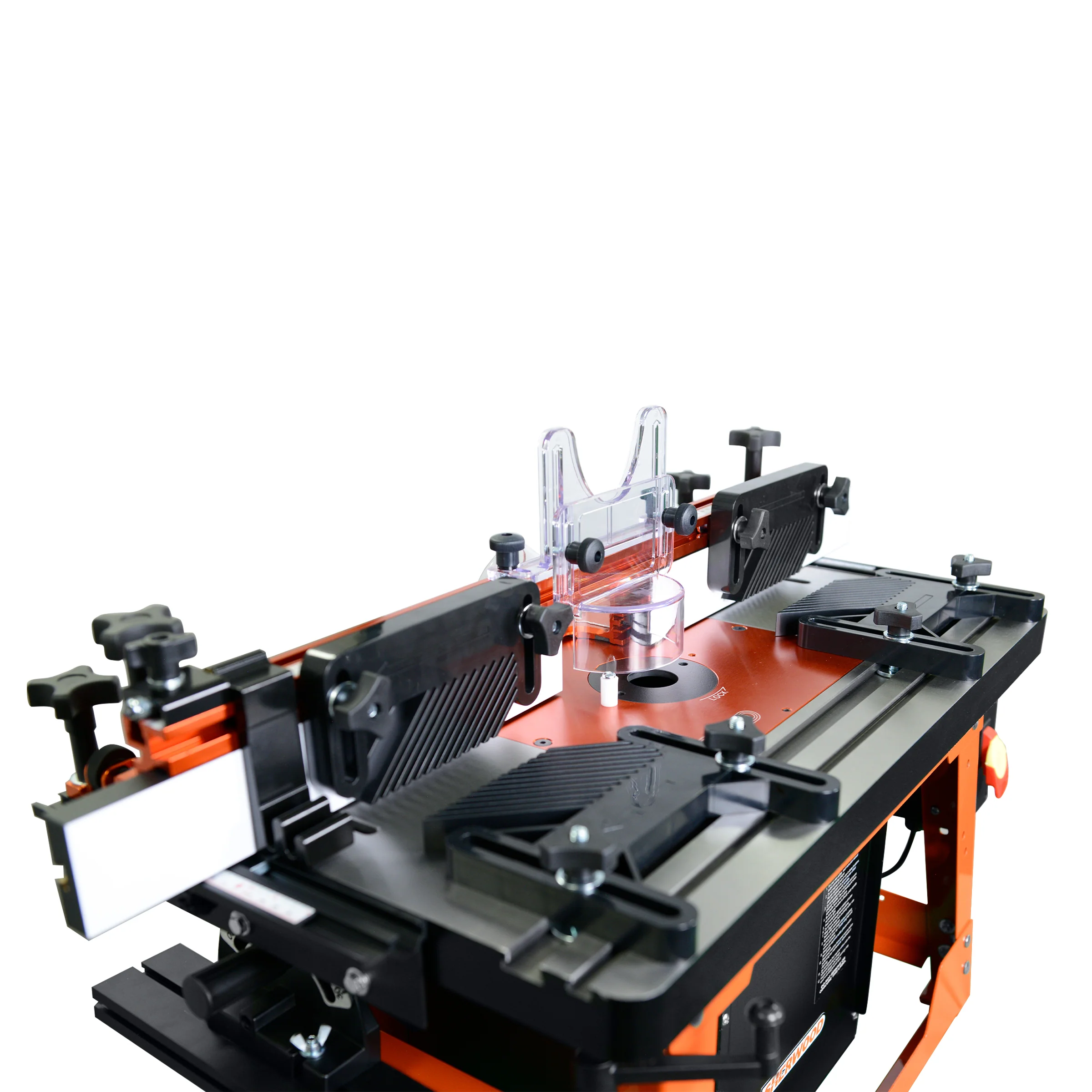

Professional grade fence

A good router table needs a good fence. The fence on the Sherwood Cast Iron Industrial Benchtop Router Table has all the features you would expect to see on a professional grade fence. Including T-Tracks so you can attach a range of accessories. Also included are fence faceplate packing rods, use these to pack the faceplates out and turn your router into a jointer.

Cast iron worktable

Cast iron is super flat so you are always assured your work is running true to the cutter. Its super durable and so lasts a lifetime. Its heavy so vibration is minimised, and it won’t slip if you lean on it.  And lastly, cast iron means you can attach magnetised accessories – open your routing world with cast iron.

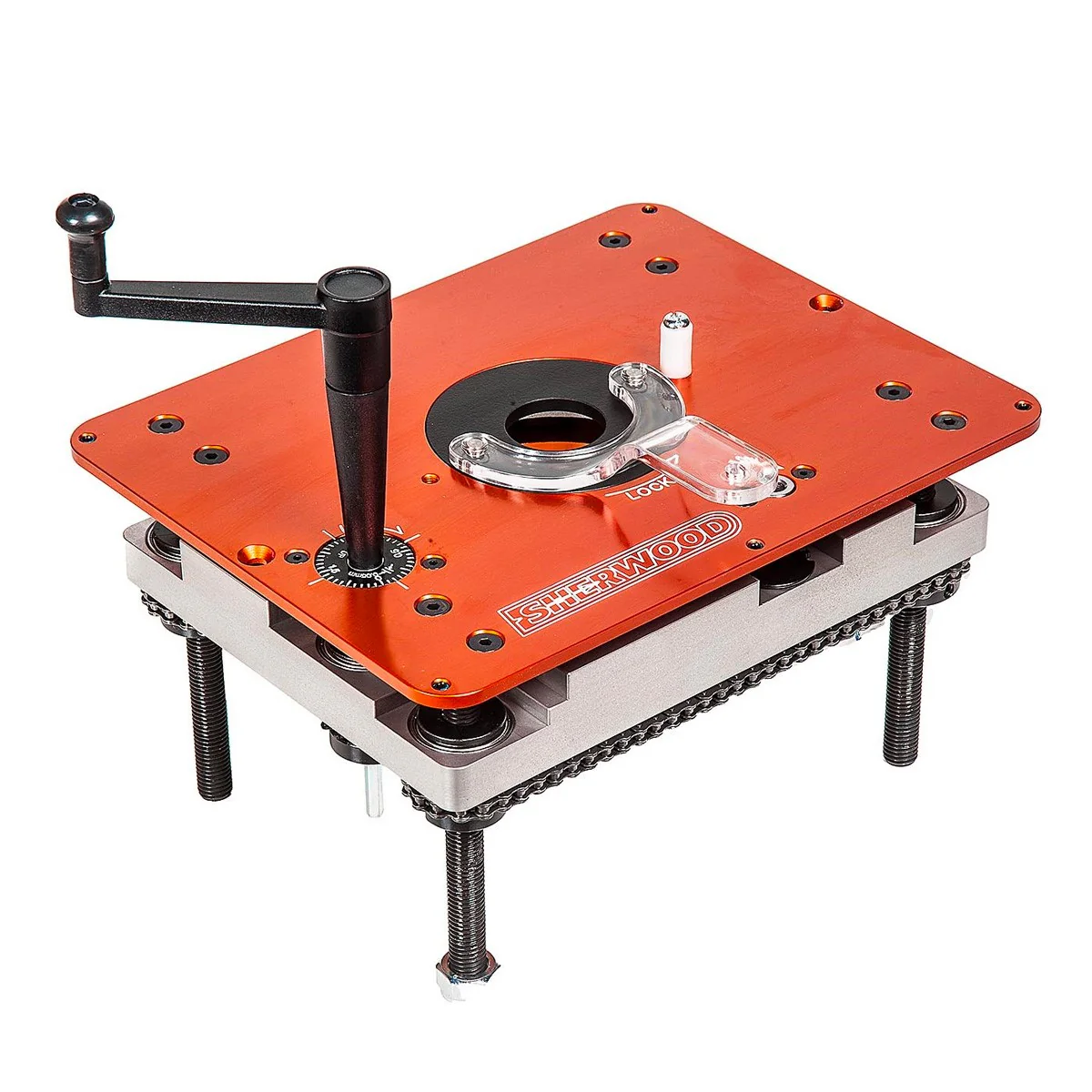

Save your knees

No matter what version of router lift you use, you now have proper kit to manage your router. Use the height adjustment winder to set the depth smoothly and accurately without bending your knees.

Turn your router fence into a jointer

Your router fence is now even more versatile. Included with your fence are 2 x fence faceplate packing rods. Slide these in behind the outfeed faceplate to pack them out turning your router into a jointer.

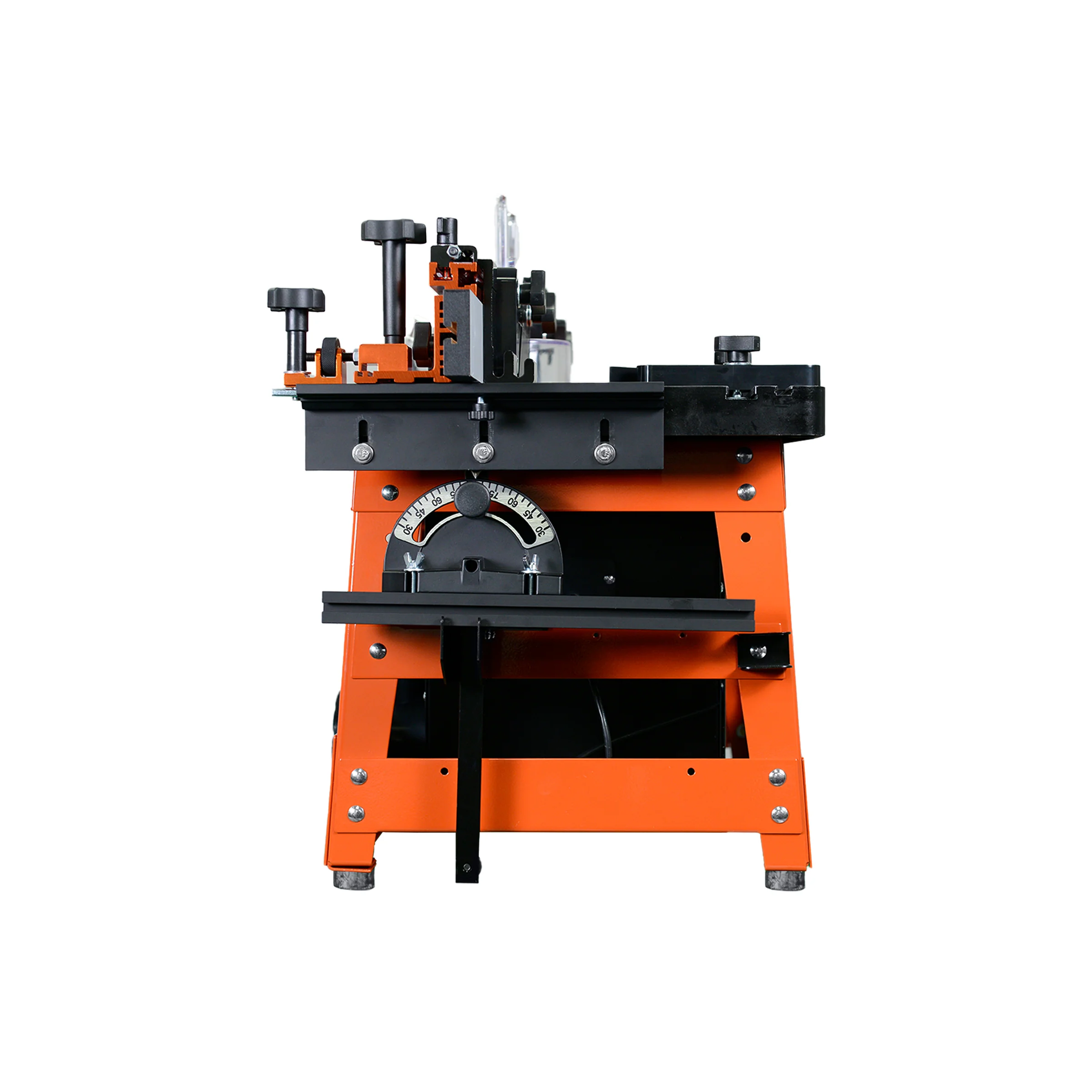

Mitre guide

Your Sherwood Cast Iron Industrial Benchtop Router Table is supplied with a mitre guide. Use to make angled cuts across the router bit. The benchtop router worktable features an embedded twin slot mitre track. One slot for the mitre guide, one T-Track for additional accessories such as feather boards.

Fine fence adjustment

If you need to finely tweak your router fence, then Sherwood has you covered. Use the Fence Fine Adjustment Kit to take control of your routing by being able to wind the fence in to position by the millimetre. No more errors, no more wasted material.

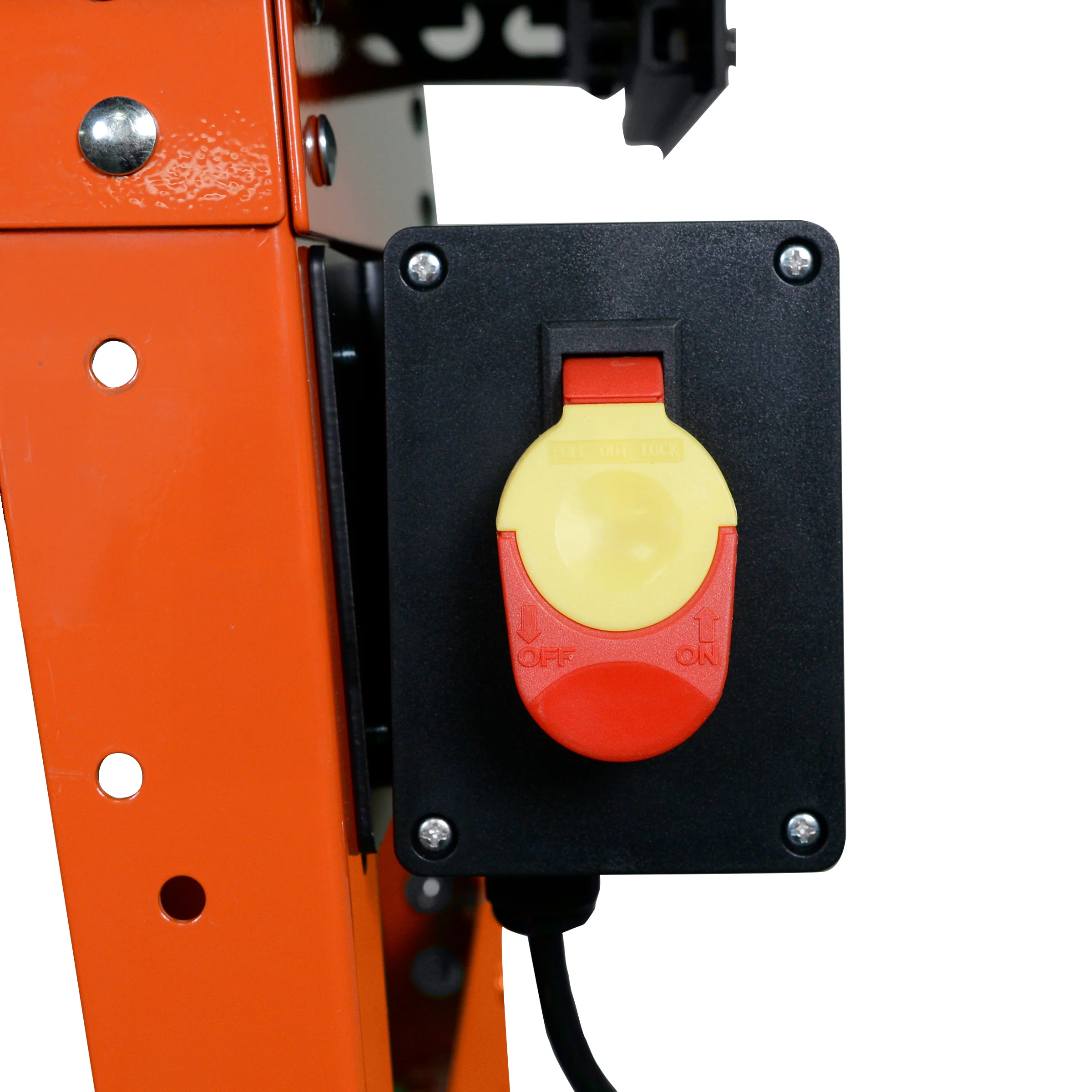

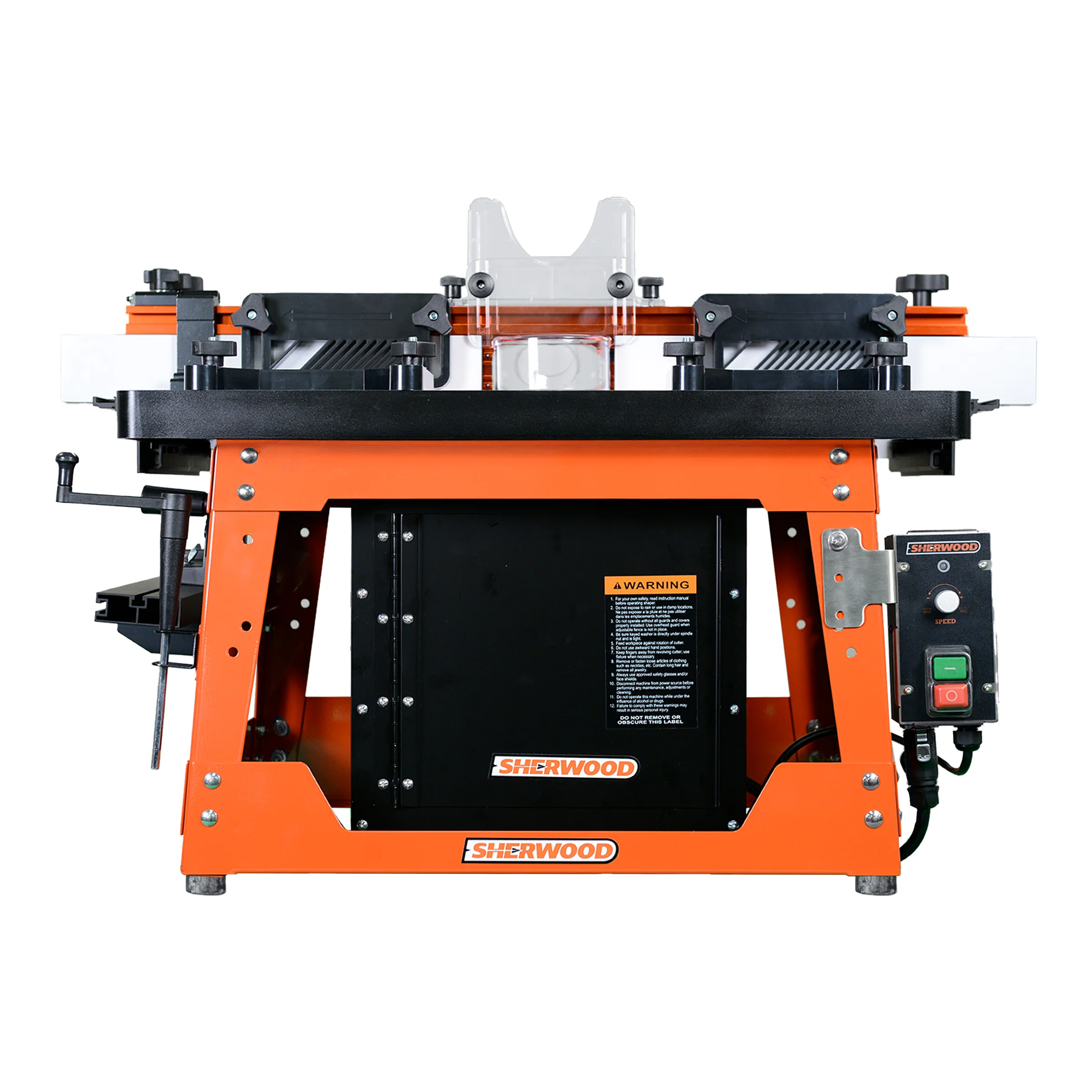

Safety switch

Plug your router motor into the switch, plug the switch into the workshop power point. You know have a safety on/off switch right at your fingertips. Cut the power super-fast if you get into trouble. The days of walking around or fiddling under the worksurface for the switch are over.

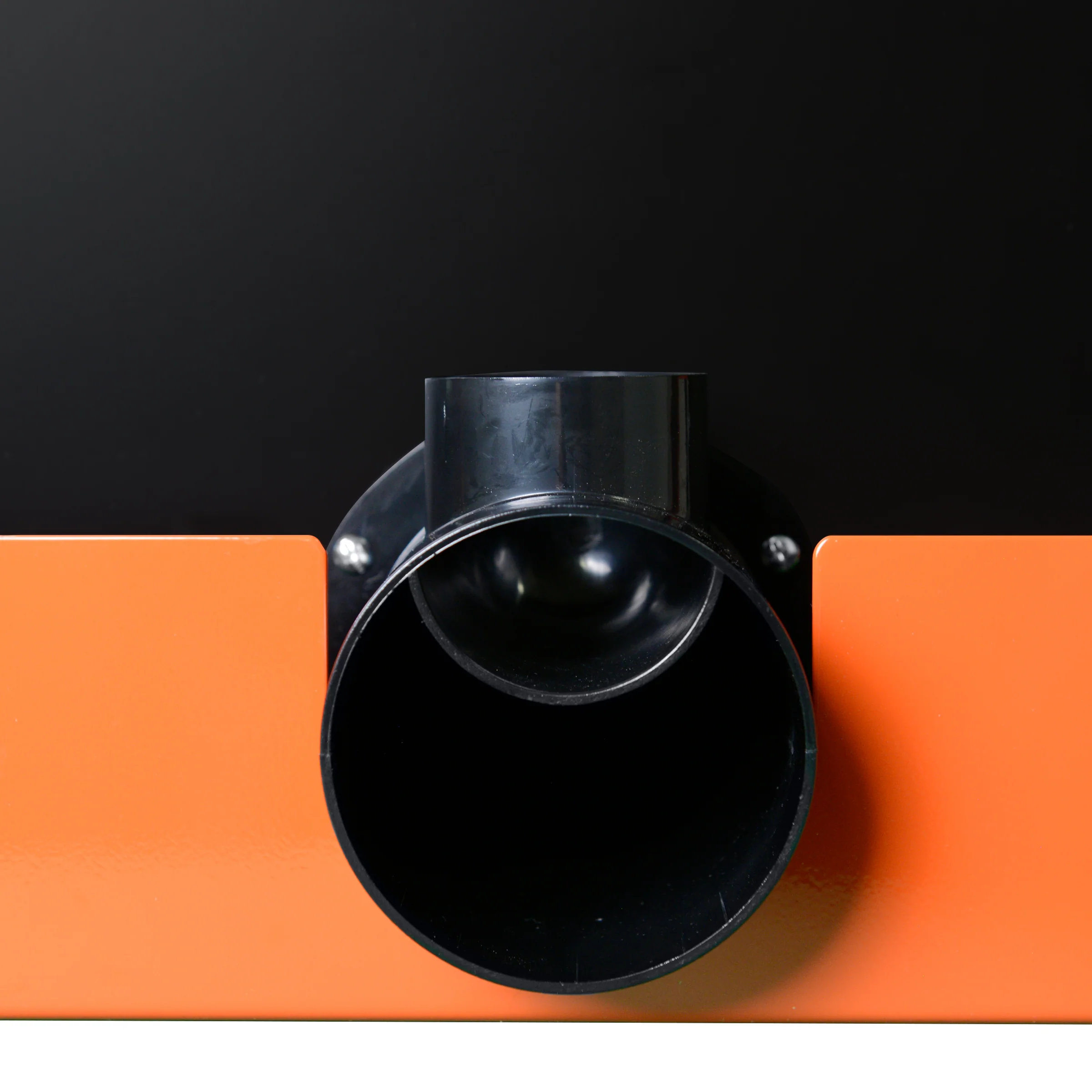

Dust collection system

The dust collection system is made up of a dust collection box mounted under the table with a 102mm (4in) dust port. And a 63mm hose that links the fence dust port to the dust collection box outlet. You just need to attach the 102mm port to your dust collector and enter the world of dust free routing. Use SKU RTDCG-4 to learn more about the dust collection system on the Timbecon website.

Robust construction

It may be compact, yet this benchtop router ensemble is no waif. The cast iron top, sturdy metal base frame means your benchtop router is built for work. Enjoy years of vibration free use from this benchtop setup.

5-Year warranty

All Sherwood products feature a standard 5-Year limited warranty. No other router table setup in its class is more supported than the Sherwood Cast Iron Industrial Benchtop Router Table.

Specifications

Overall Dimensions	440 x 820 x 530mm H
Worktable Dimensions	38 x 420 x 685mm
Worktable Height	405mm
Fence Dimensions	95 x 780mm
Distance From Spindle To Front Edge Of Table	200mm
Worktable Mitre Slot Dimensions	1 x 9.5 x 19mm | 1 x 7 x 9mm
Mounting Plate Cut-Out	235 x 298mm
Throat Ring Aperture Sizes (Diameter)	92.2mm (plate) 38mm (Insert ring) Spanner included
Router Lift/ Mounting Plate	RLIFT-3
Dust Ports	Fence: 63mm Dust Collection Box: 102mm
Compatible mounting plate insert rings	RTIRS-4 & RTIRB
Fence T-Track dimensions	2 x 9.5mm x 14mm
Fence Travel	110mm
