Cast-Iron Industrial Router Tables: Australia's Most Complete Routing Platform

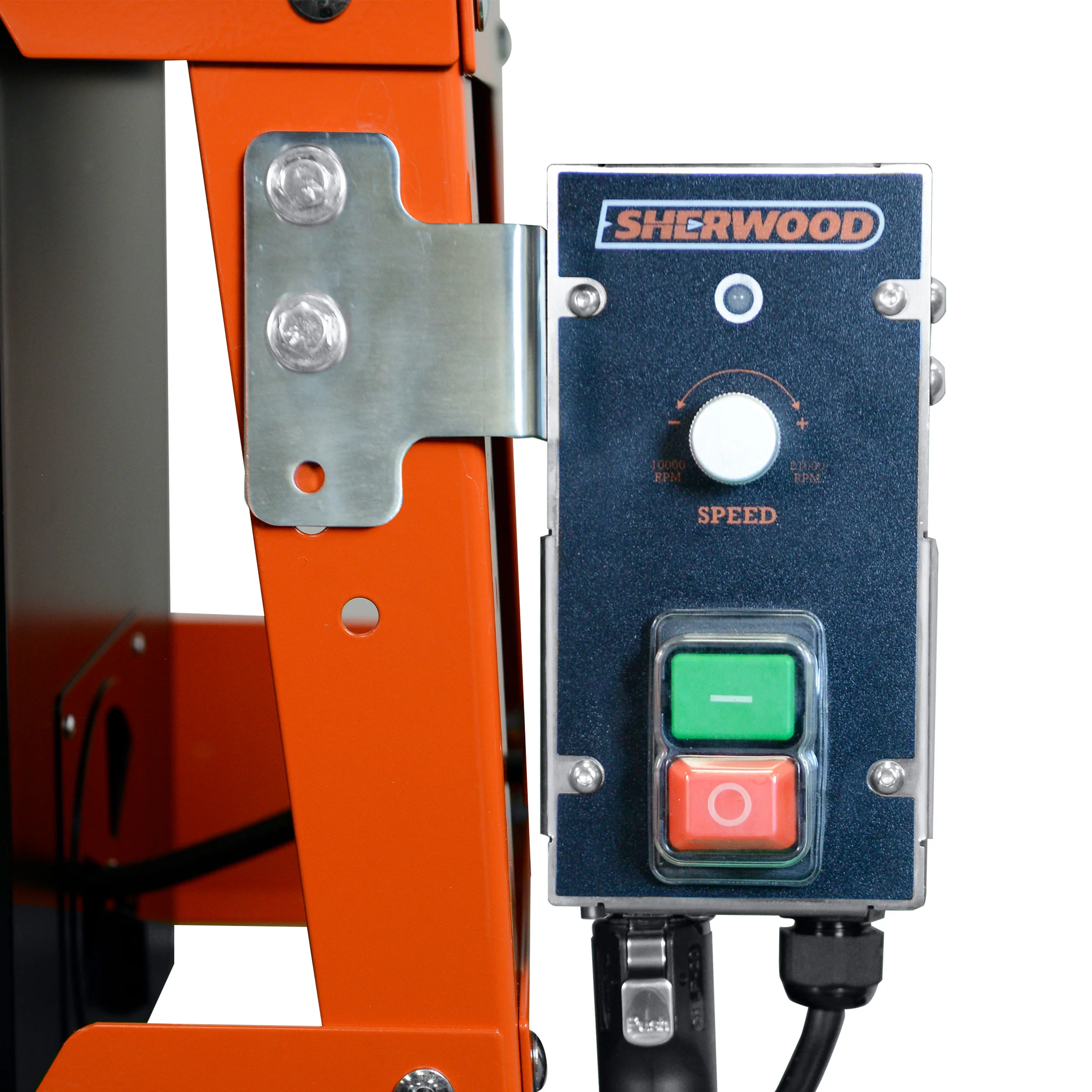

Please note: the Router Table Stand & SRM-1800-N are both supplied with a switch, please use the SRM-1800-N (NVR) switch.

A well-equipped router table is an invaluable addition to any woodworker’s workshop. And you don’t need a full-size setup to benefit from all the features a modern router table can offer.

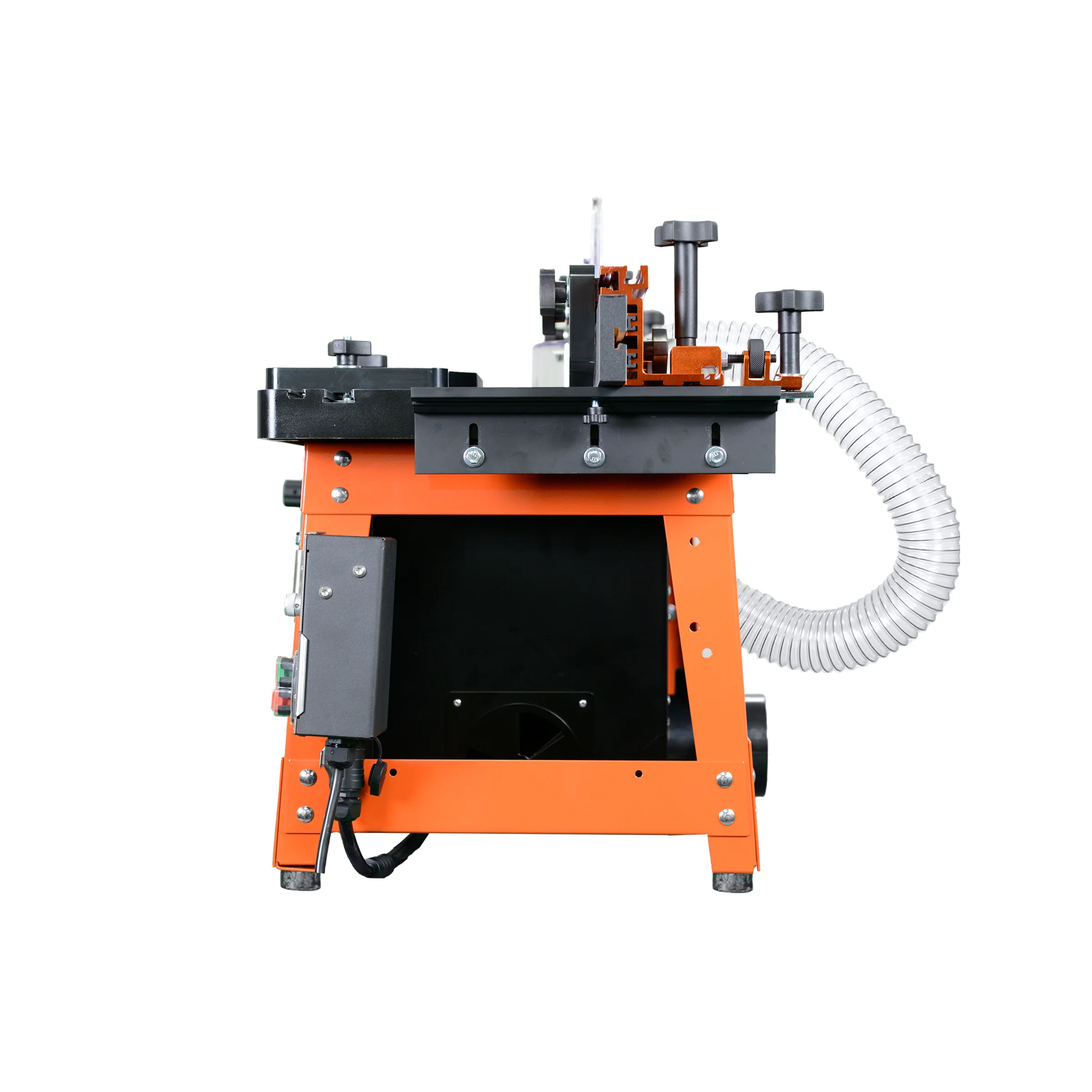

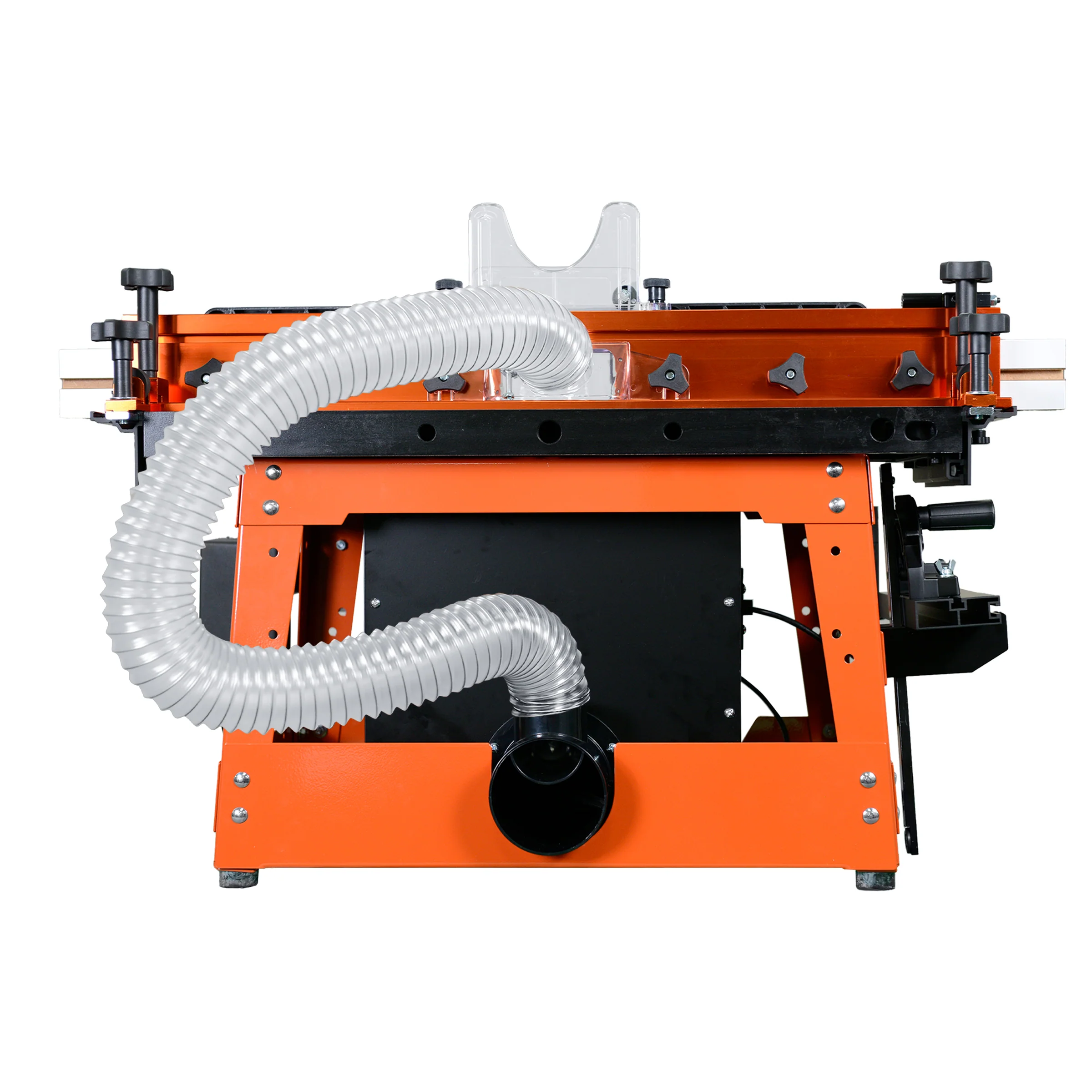

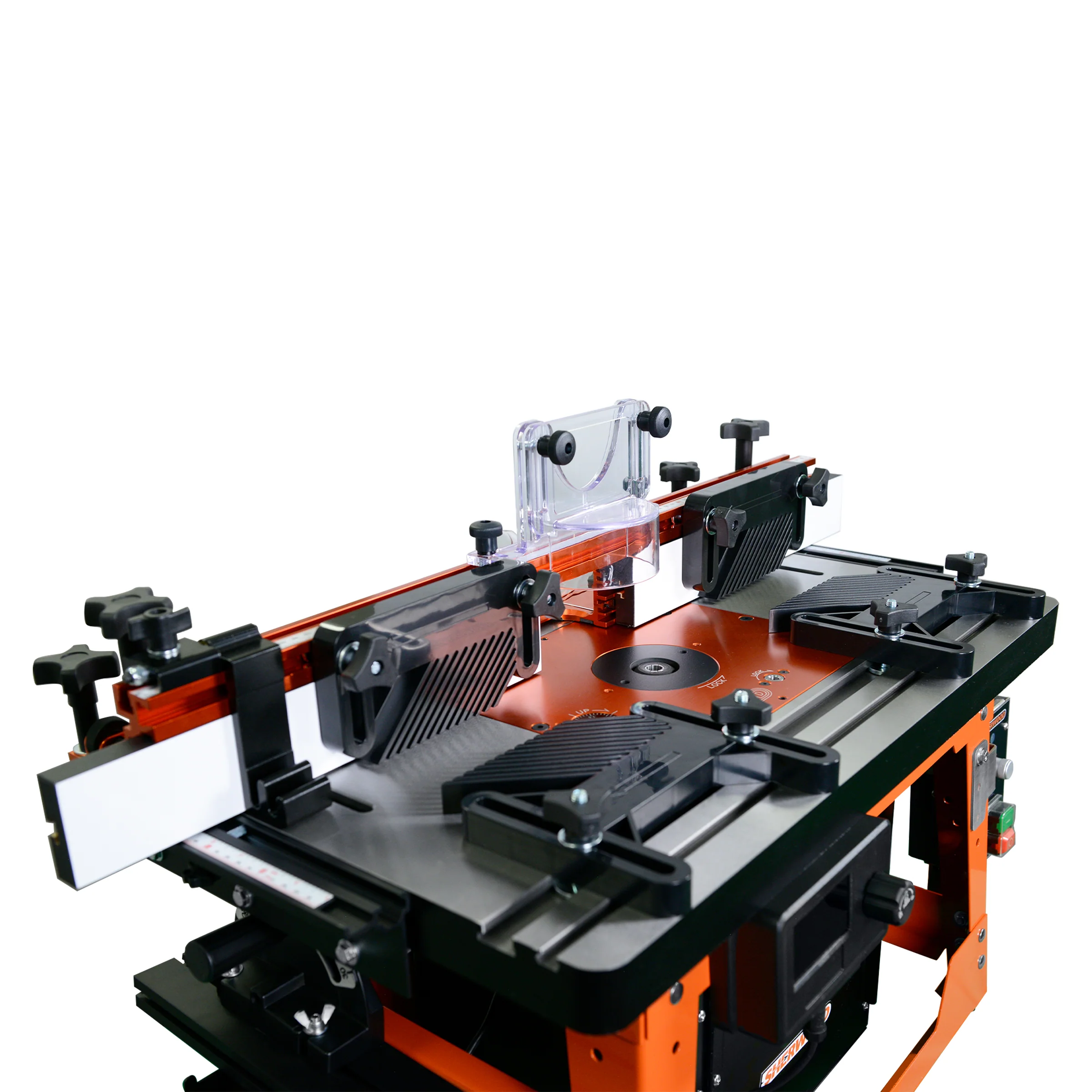

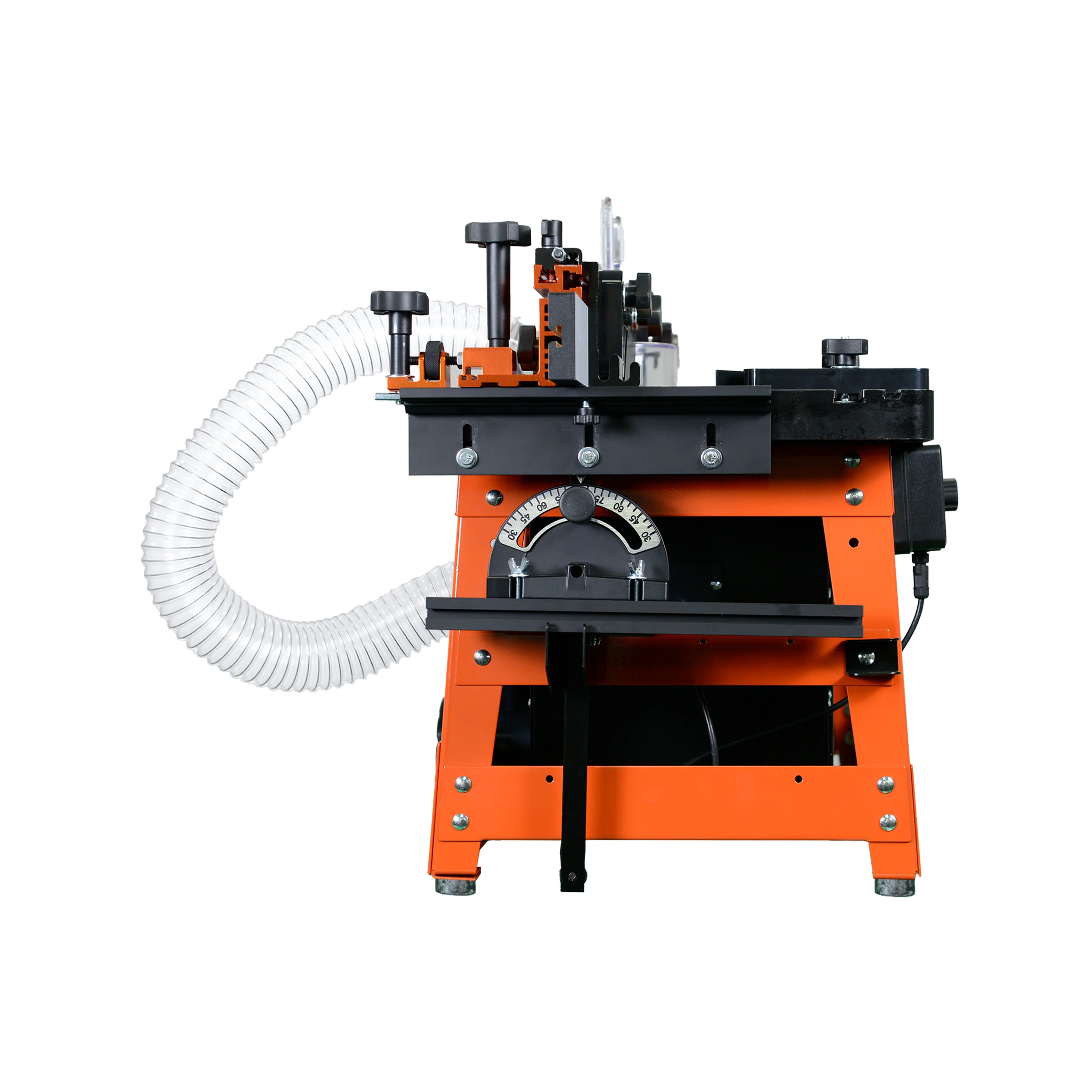

The Sherwood Industrial Benchtop Router Table Kit with Motorised DRO Router Lift is packed with our most popular components to make a router table that offers unparalleled performance. It has a heavy-duty stand, precision-machined cast-iron top and a Super-Flat rock-solid fence with a Fine Fence Adjustment Kit. The Sherwood Difference continues with a Remote Switch, Fence Flip Stop, Dust Collection Box and 4-Piece Featherboard Kit – all included for a reduced price! With the standard Five-year Warranty Sherwood is famous for, this is the Industrial Router Table you can always rely on.

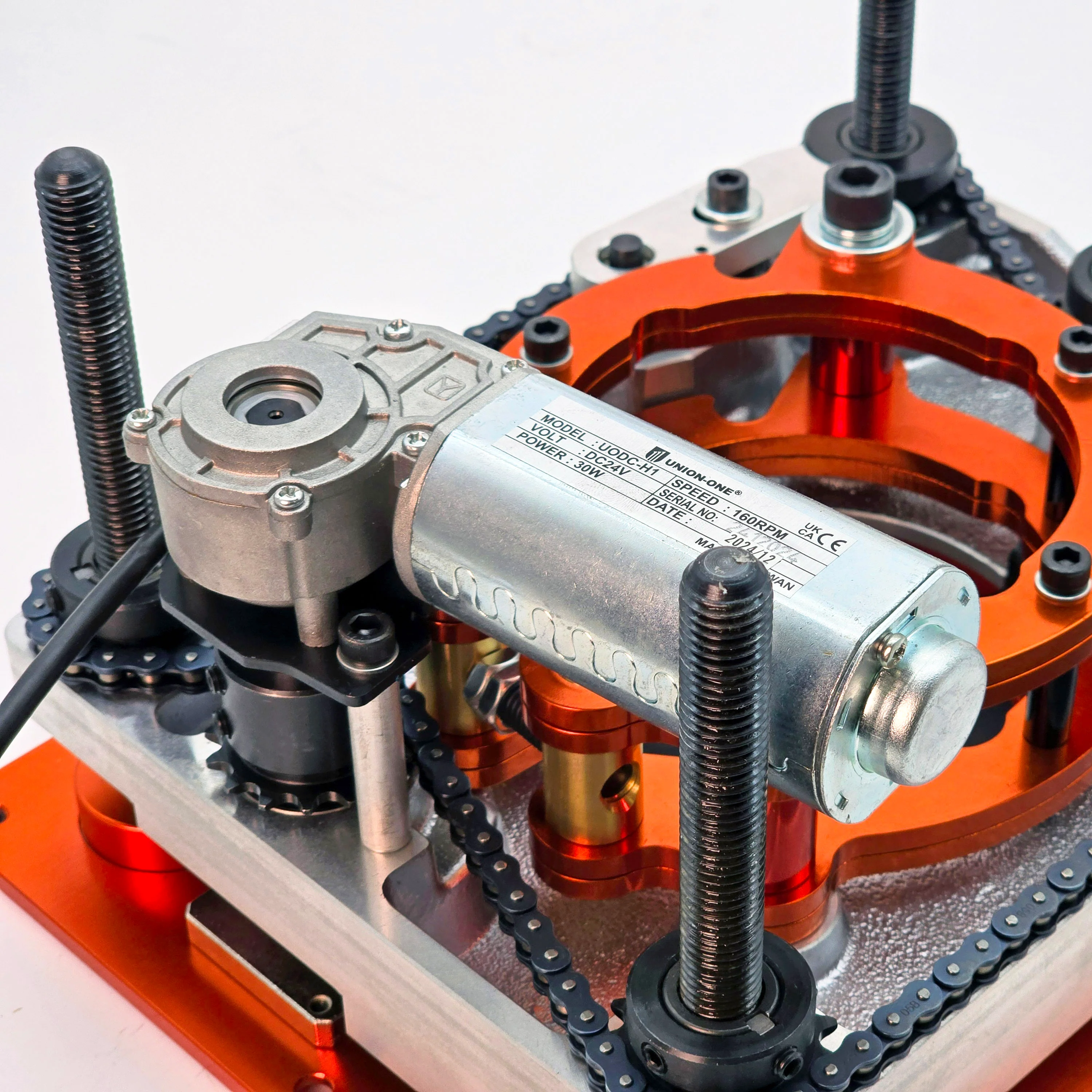

Motorised Lift with Digital Readout

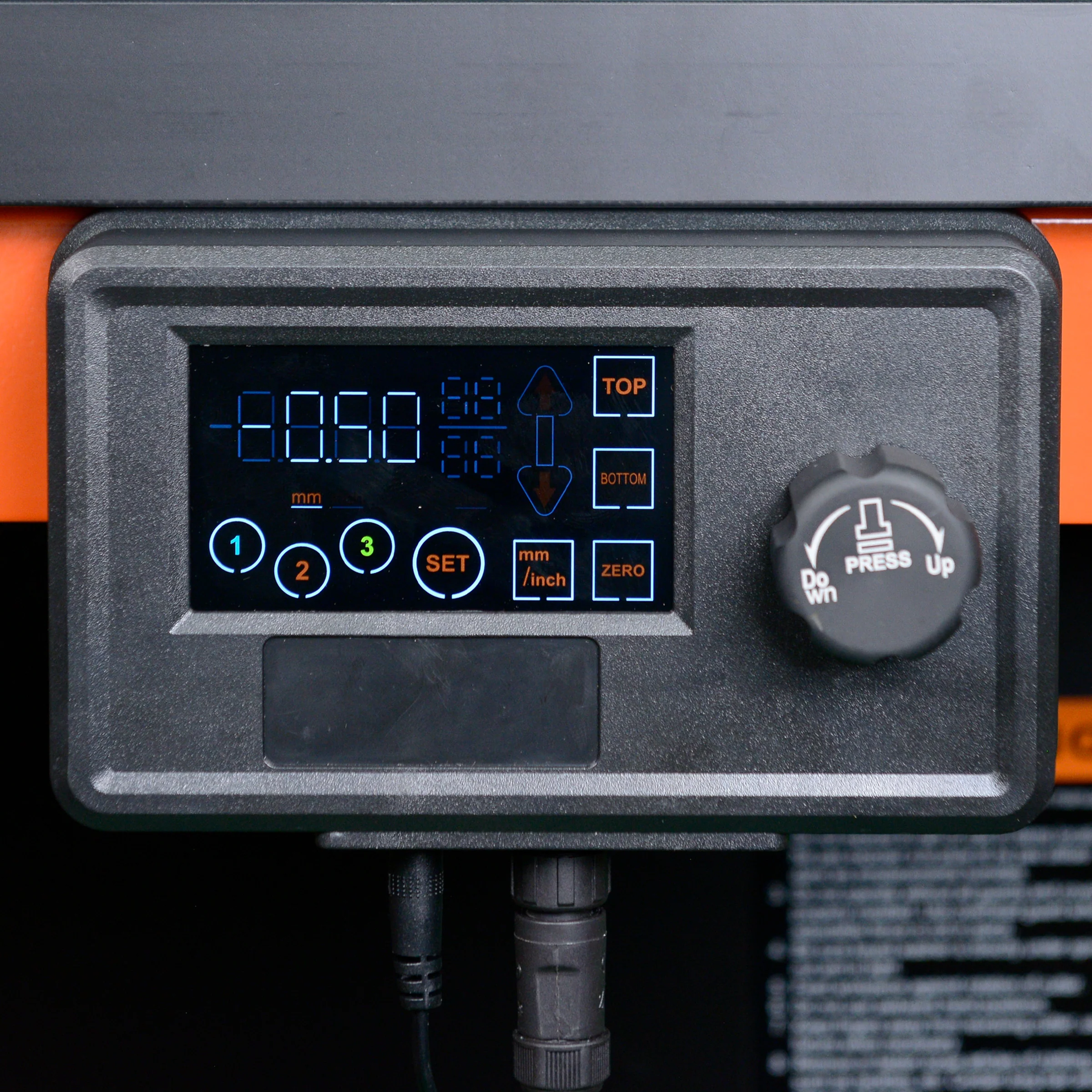

Get digital accuracy and easy height adjustment with the motorised lift and digital read out. The simple design of the control box features an on/off switch at the base, an easy-to-use height adjustment knob, and inset magnets at the rear, allowing it to mounted wherever suits best on your router table set up.

Intuitive on-screen settings allow for quick adjustments to the highest and lowest points, switching between metric and imperial scales, and snapping to a custom zero point. Default adjustment increments are 0.5mm and 0.02in respectively, with an additional six default settings: 2, 4 or 6mm for metric, and 1/8, 1/4 or 1/2in for imperial. Simply turn the knob left or right to your desired height shown clearly on the display, and then press once to let the lift do the rest for you.

SRM-1800 Round Body Motor

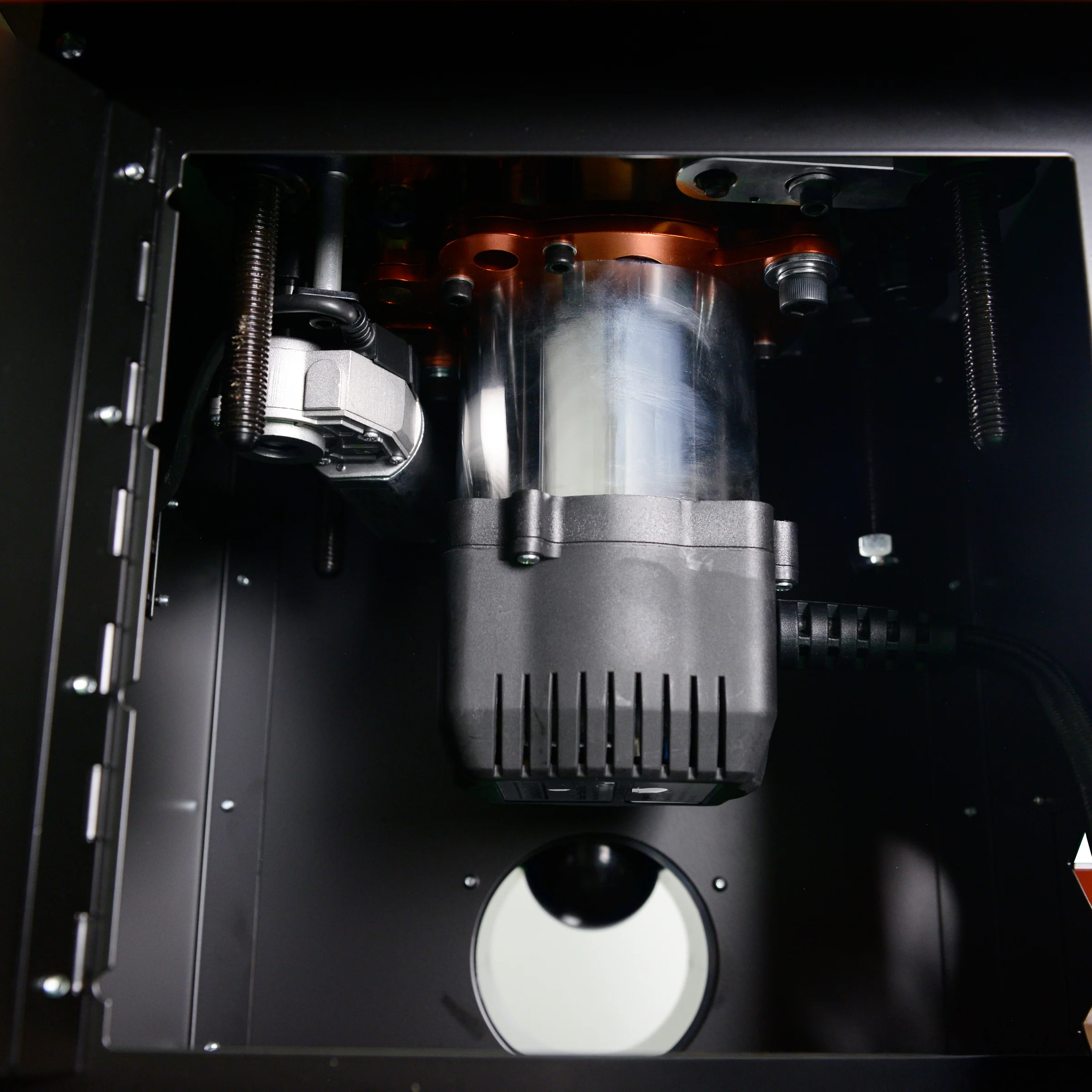

Paired with the Sherwood Round Body Router Motor, this setup becomes a high-performance routing solution. The motor delivers 2400W input and 1800W output, running at a continuously adjustable speed between 10,000 and 22,000 RPM with load-compensating control. It fits seamlessly into the Sherwood lift, mounts in minutes, and operates on a standard 240V 10A plug. Designed for table use, it skips unnecessary plunge bases and includes both 1/2in and 1/4in chucks, along with dual spanners for quick, above-table bit changes. Dust-sealing around the variable speed dial ensures longevity in demanding workshop conditions.

What's Included

Click on the links below for more information about each component.

• Cast Iron Router Table Top - 685 x 420mm
• Benchtop Router Table Stand with Mitre Guide & Switch

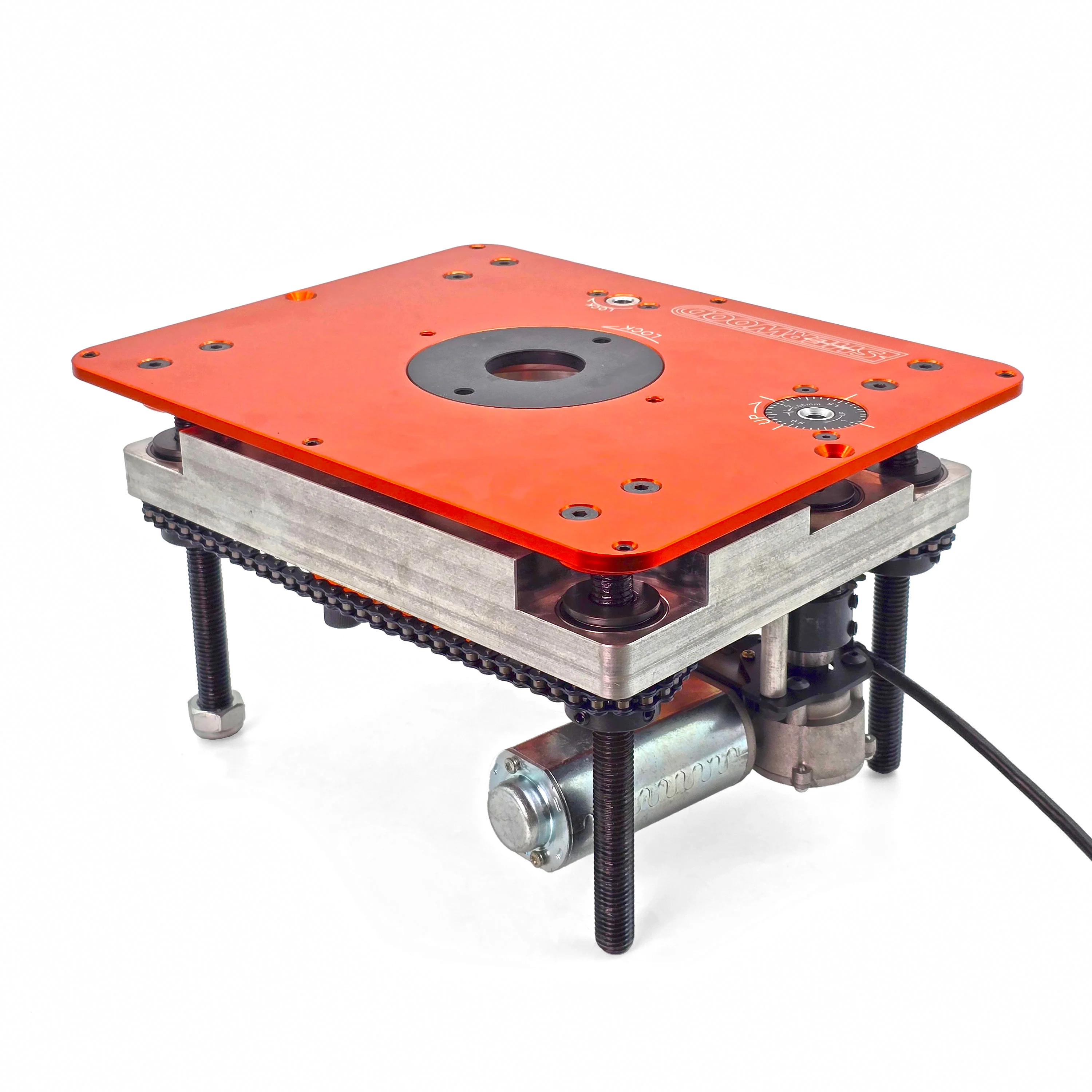

• RLIFT-8 Motorised DRO Router Lift & Mounting Plate
• SRM-1800-N Round Body Motor
• 685mm Aluminium Router Table Fence
• Fence Fine Adjustment Set
• Fence Flip Stop
• 2 x Universal Horizontal Featherboards
• 2 x Universal Vertical Featherboards

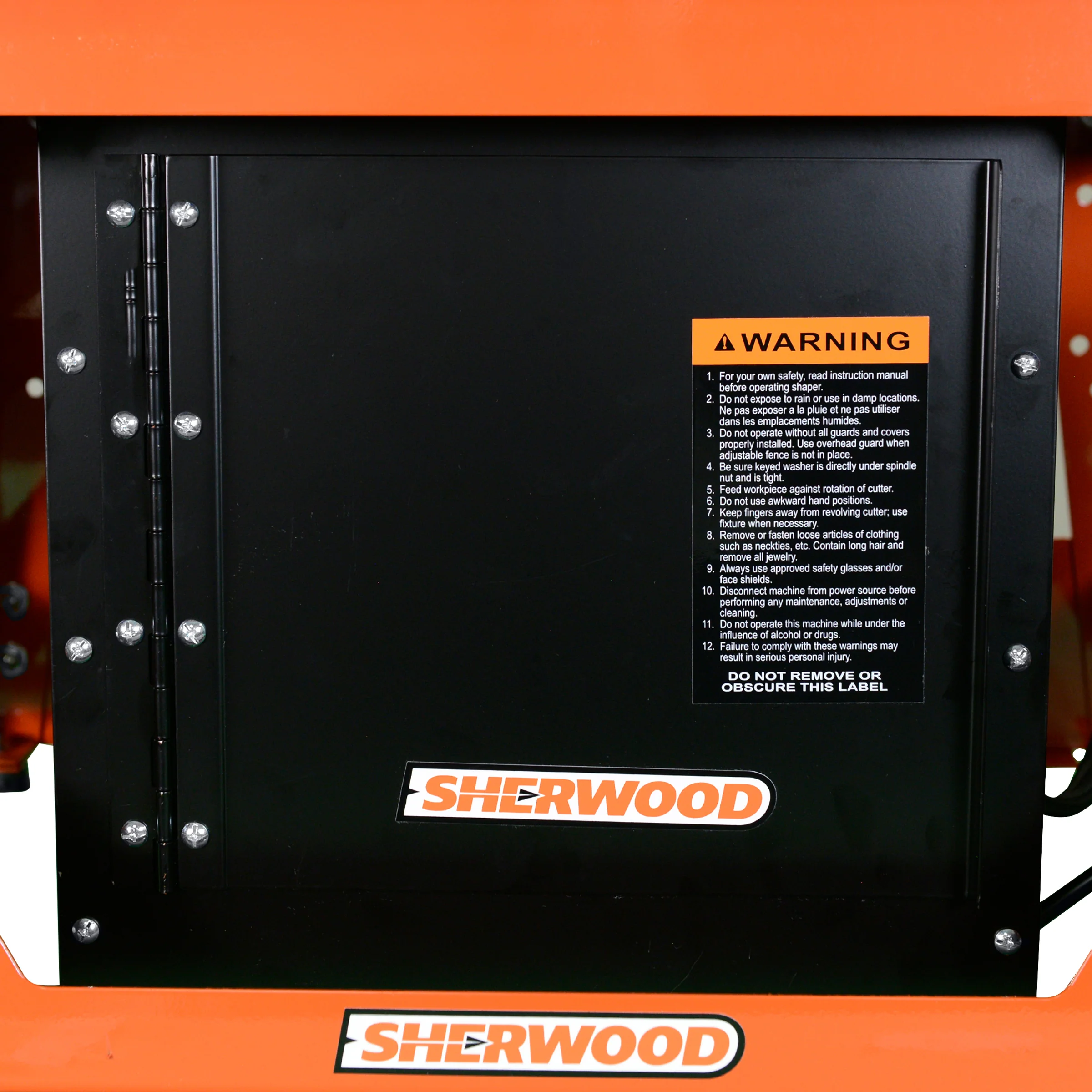

• Router Dust Collection Box

Specifications

Overall Dimensions	440 x 820 x 530mm H
Worktable Dimensions	38 x 420 x 685mm
Worktable Height	405mm
Fence Dimensions	95 x 780mm
Distance From Spindle To Front Edge Of Table	200mm
Worktable Mitre Slot Dimensions	1 x 9.5 x 19mm | 1 x 7 x 9mm
Mounting Plate Cut-Out	235 x 298mm

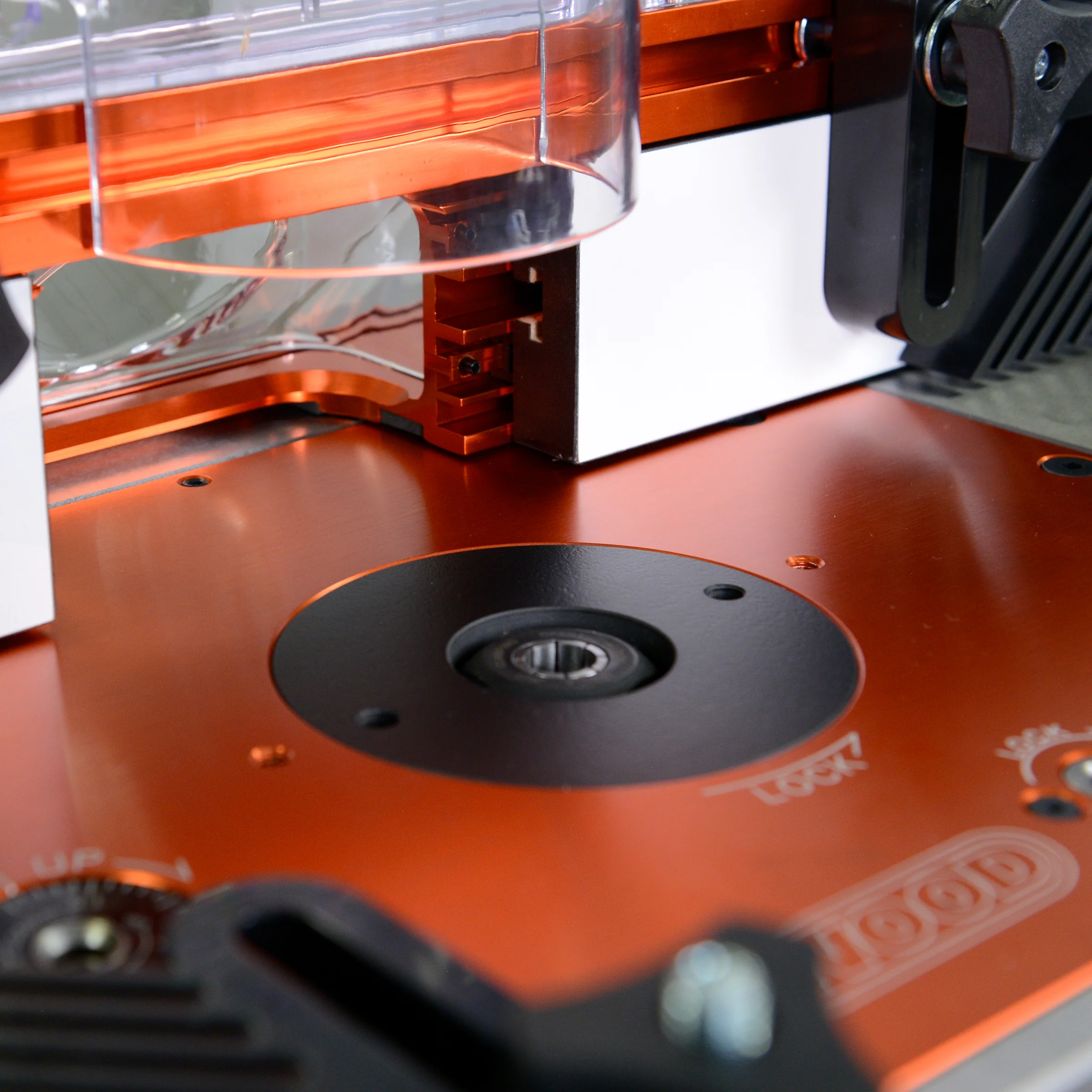

Throat Ring Aperture Sizes (Diameter)	92.2mm (plate) 38mm (Insert ring) Spanner included
Router Lift/ Mounting Plate	RLIFT-8 Motor: 240V / 30W / 160RPM
Router Motor	SRM-1800-W

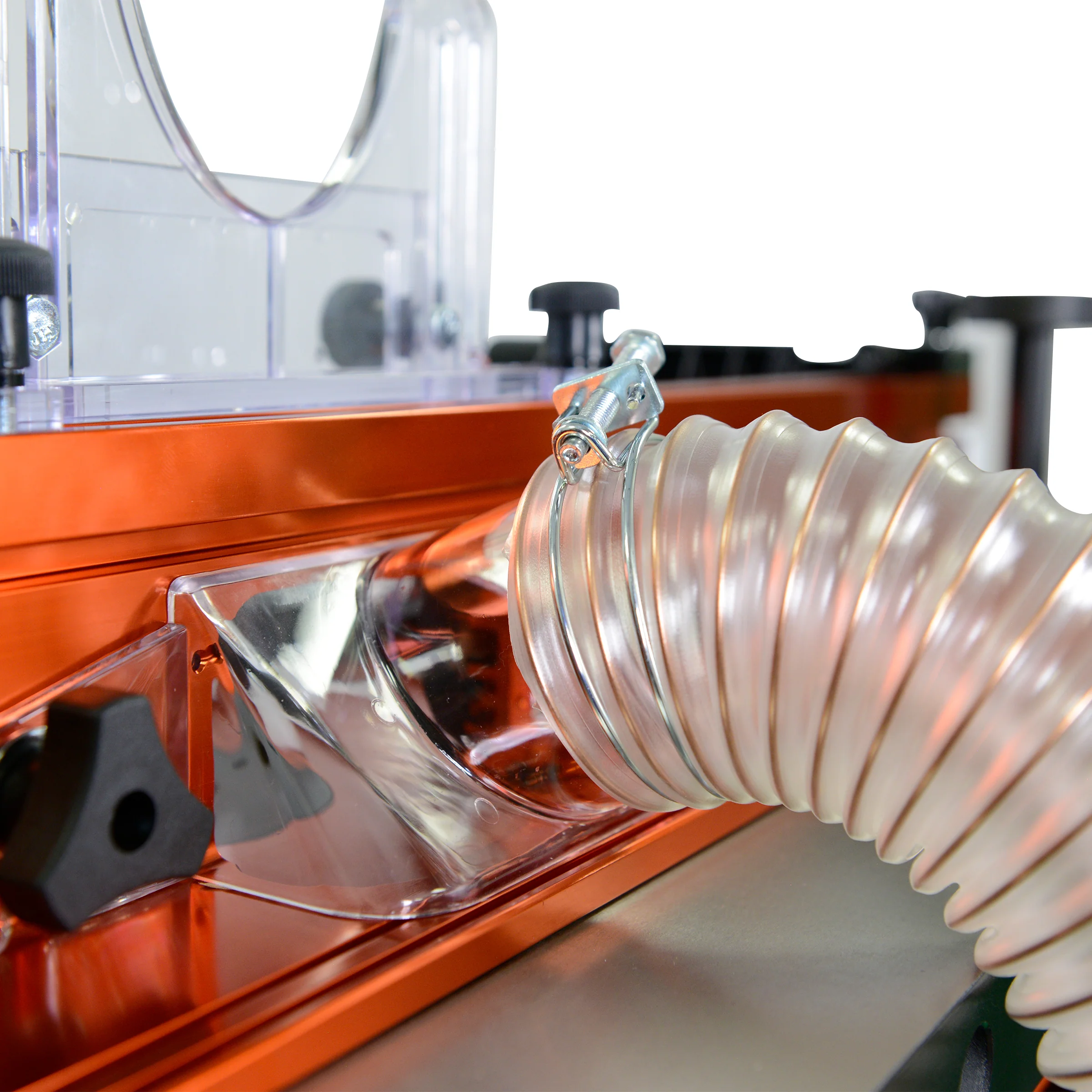

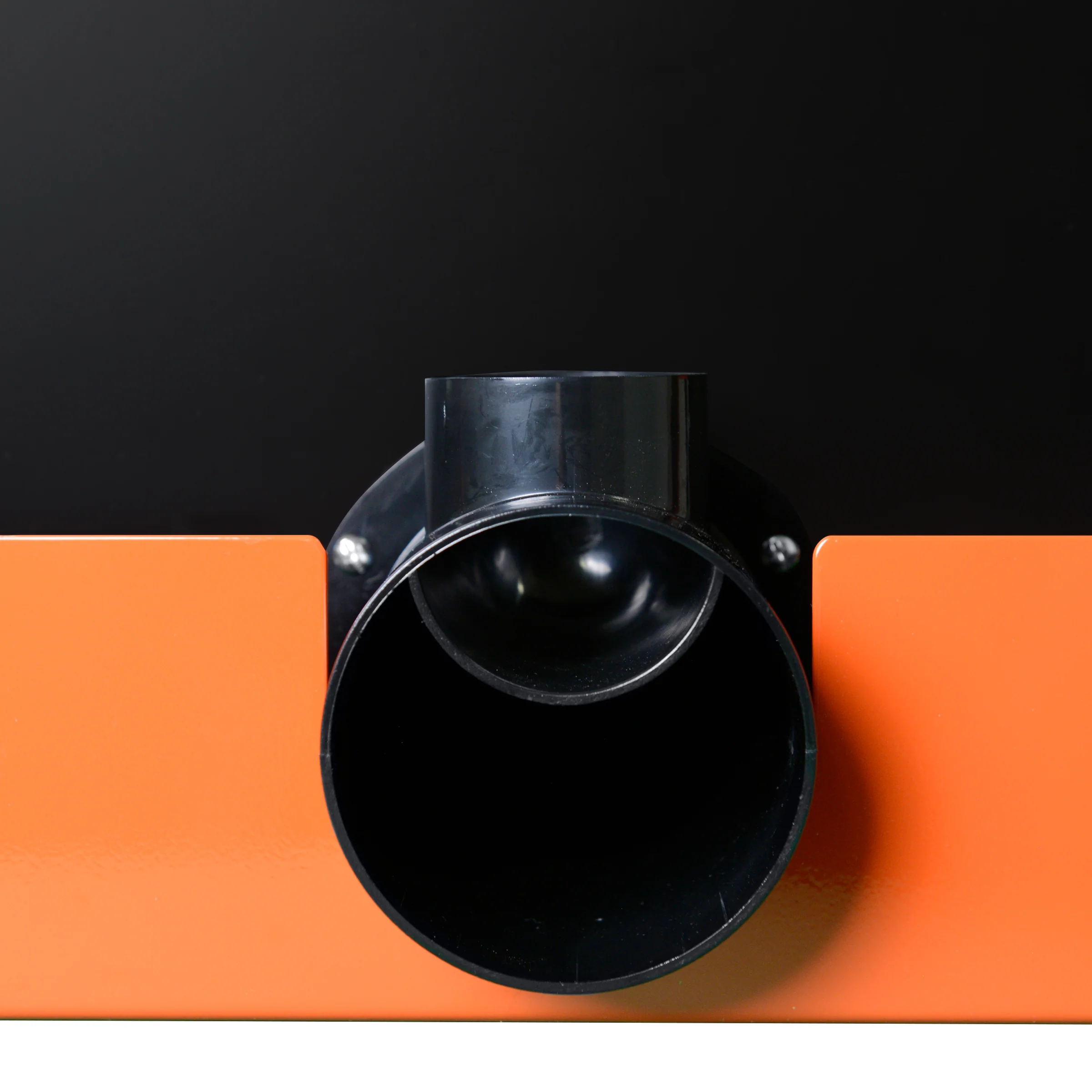

Dust Outlets	Fence: 63mm Dust Collection Box: 102mm
Compatible mounting plate insert rings	RTIRS-4 & RTIRB
Fence T-Track dimensions	2 x 9.5 x 14mm
Fence Travel	110mm
